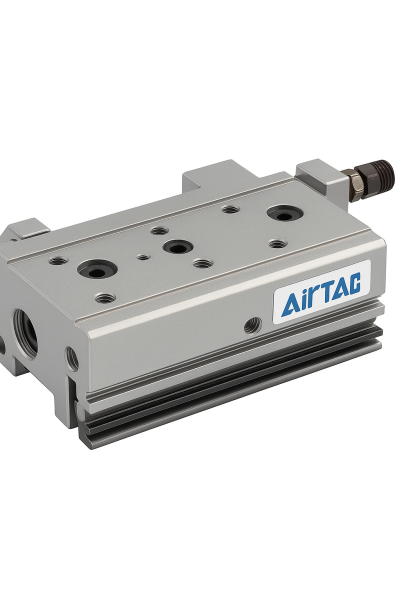

HLS Series Slide table cylinder

 HLS Series Slide table cylinder

• Roller bearing incorporating the cylinder, it achieves high precision, high rigidity, high load, excellent linearity and non-rotate tolerance.  So it can be used in precision assemblage condition.
• Pin holes for positioning improves repeatability of work mounting
• Floating jointer design Piston rod neednt endure additional torque
• Dual rod, doubles the output thrust
• Pin holes for positioning Improved repeatability of body mounting
• Body mounting rap Mounting from 3 direction available
