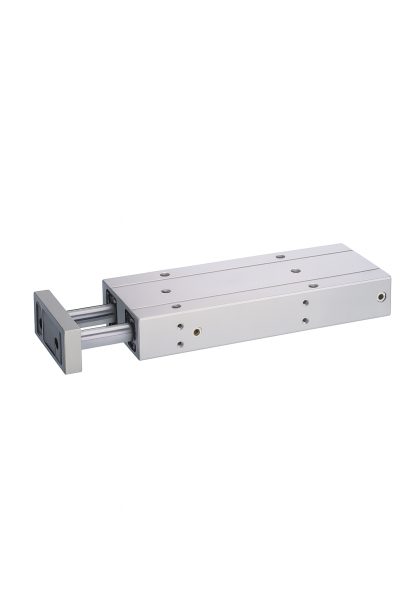

Guided Cylinder Dual Rod Style TR Series

 JIS Cylinder TR Series Dual rod style

• JIS standard is implemented.
• The nonrotating precision is high and deflection of the end of piston rod is low which is suitable for precise guide.
• It adopts lengthening type sliding supporting guide. No additional lubricant is needed and it has good performance of guide.
• Mounting holes on three sides facilitates multiposition mounting.
• It is good resistance to bending and twisting moments.
• Except for the axial each side of the cylinder has installation orifices to provide several installation and fixation ways for the customers.
• There are two groups of air intake and outlet at two sides of the cylinder for the actual ion.
• Bumper  in front of the barrel can adjust the stroke of cylinder and relieve impact.
• Standard configuration of this series has magnet and the type without magnet is not available.
