Cross-Roller Guide/Ball Guide

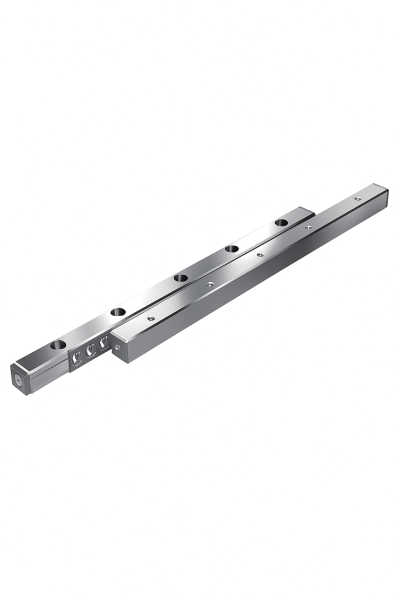

In the Model VR, precision rollers are orthogonally aligned one after another in a roller cage that is combined with a dedicated rail having a raceway cut into a V-shape groove. When two units of the cross-roller guide are mounted in parallel, the guide system is capable of receiving loads in four directions. In addition, since the cross-roller guide can be given a preload, a clearance-free, highly rigid, and smooth slide mechanism is achieved.

Cross-Roller Guide/Ball Guide

Types

• Cross-Roller Guide Model VR
• Ball Guide Model VB
• Cross-Roller Guide with Cage Alignment System VRG
